100% manufactured in Italy by DAVI

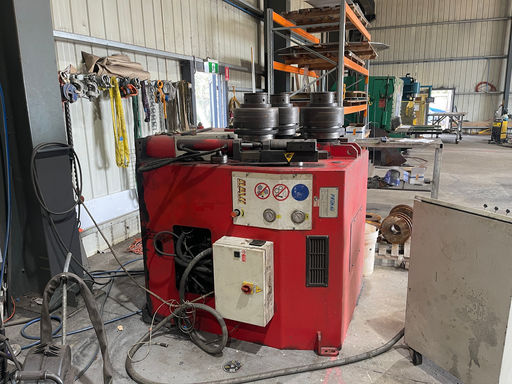

Model MCP 3211

Serial Number 20720004 – 18 years old

Number of shafts/rolls 3

Shafts Type Vertical/Horizontal

Top Shafts Diameter 105 mm

Side Shafts Diameter 105 mm

Rolls Diameter (external) 310 mm

Powered Rolls All 3 rolls are powered as standard feature

Rolling Speed Up to 7 m/min

Installed Power HP 15 Power Supply 400 V, 50 Hz

Guiding Rolls Independent NOT tied on the side rolls

3 Independent motors for rolls rotation

3 Independent Hydr. Transmissions (one on each shaft)

Davi Universal Rolls allow you to bend more types of section than ever! (including beams and channels)

Max capacity PFC 180 mm (specs attached)

DAVI Smart CNC – all axis controlled by encoder

Tube dies set – 25 mm – 32 mm – 40 mm – 50 mm
